Project Description

The project aims to automate the building, testing, and deployment process of a web application using Jenkins and GitHub. The Jenkins pipeline will be triggered automatically by GitHub webhook integration when changes are made to the code repository. The pipeline will include stages such as building, testing, and deploying the application, with notifications and alerts for failed builds or deployments.

Task-01

Jenkins CI/CD pipeline with GitHub Webhook integration for Deploying Docker applications on EC2 instances using the declarative pipeline

Step — 1 Install Java

sudo apt update
sudo apt install openjdk-11-jre

Step — 2 Install Jenkins

sudo wget -O /usr/share/keyrings/jenkins-keyring.asc \
  https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key
echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
  /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update
sudo apt-get install jenkins

Step — 3 Start Jenkins

sudo systemctl enable jenkins
sudo systemctl start jenkins
sudo systemctl status jenkins

Unlock Password Jenkins
cat /var/lib/jenkins/secrets/initialAdminPassword

Step — 4 Ipaddress:8080

Make sure port 8080 is been added to a security group

Go to ec2 instance

cat /var/lib/Jenkins/secrets/initialAdminPassword

Now Click on, “Install Suggested Plugins”

Install the suggested plugins.

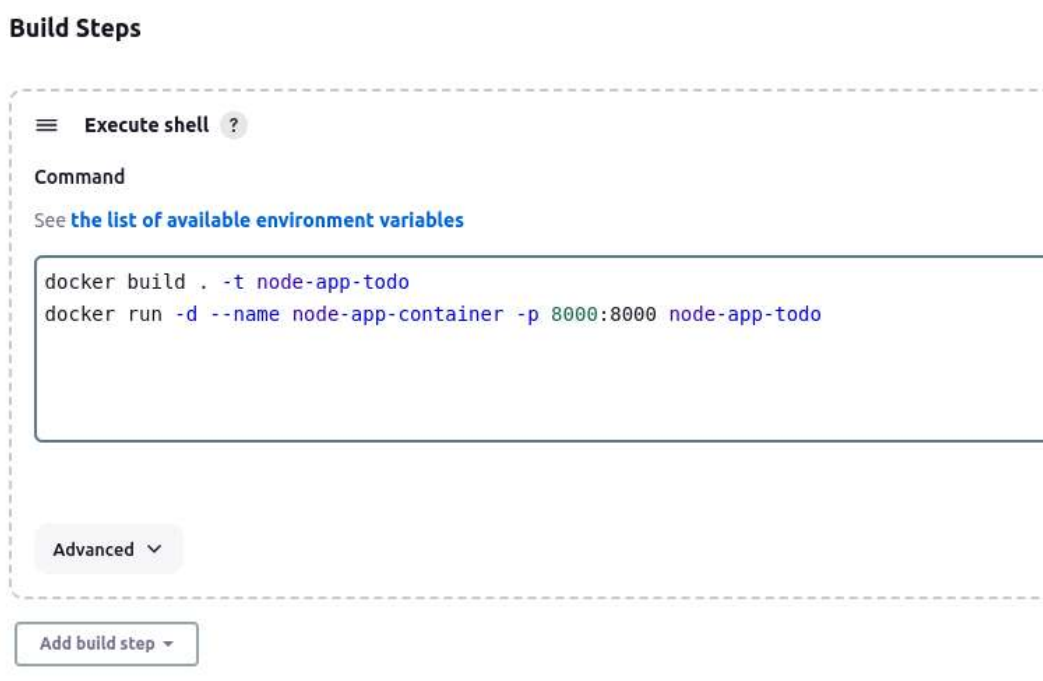

Step — 5 Setting Up Free style Project in Jenkins and generating ssh-keygen so that github communicate with jenkin server.

Jenkins Dashboard, Click on “New Item”.

Step — 7 Creating Webhook using jenkins payload URL and selecting build triggers.

http://YOUR_HOSTNAME:8080/github-webhook/

Step — 8 Test build

Happy Learning!
